Drum filling machine by weight is designed for semi automatic filling of compatible liquids into industrial drums.

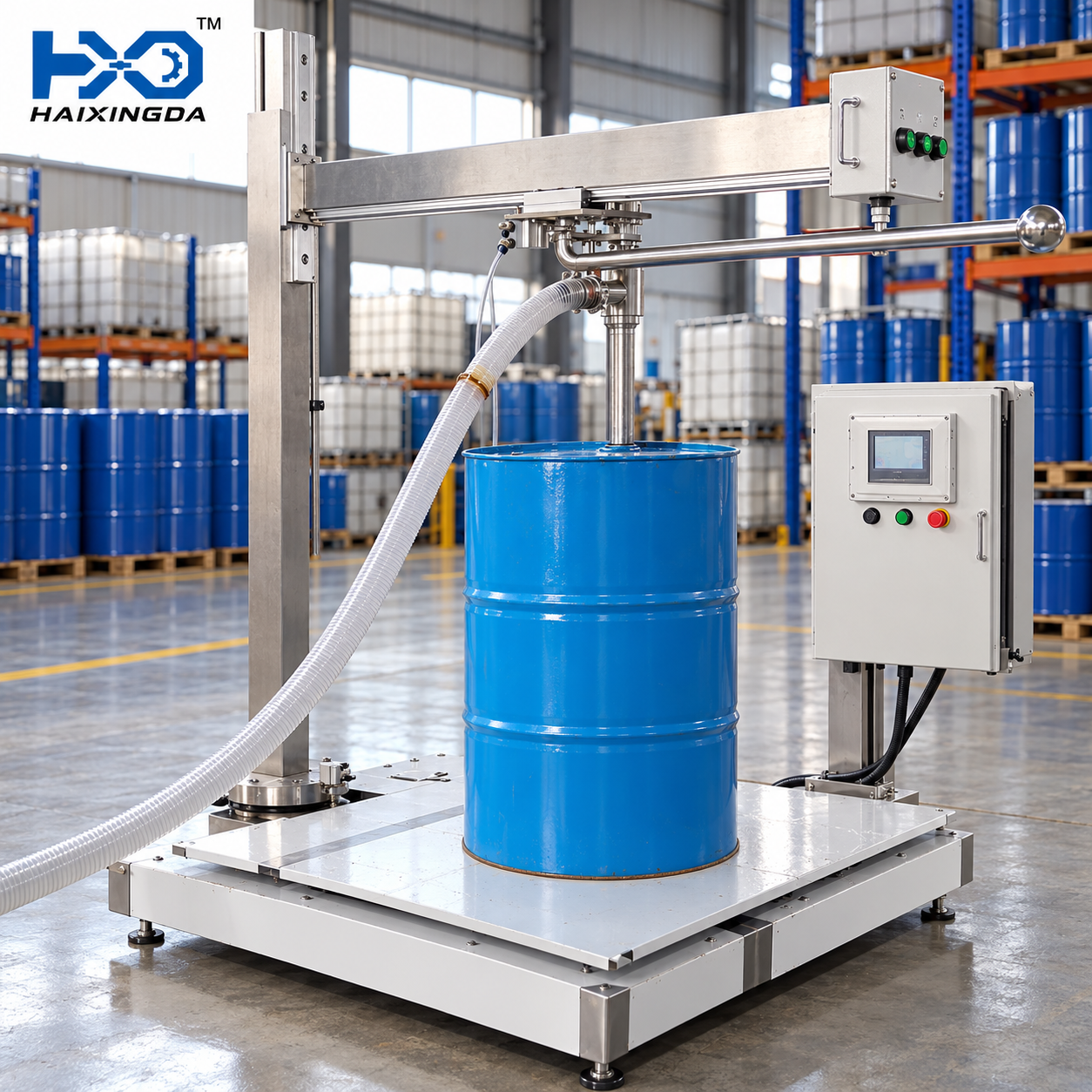

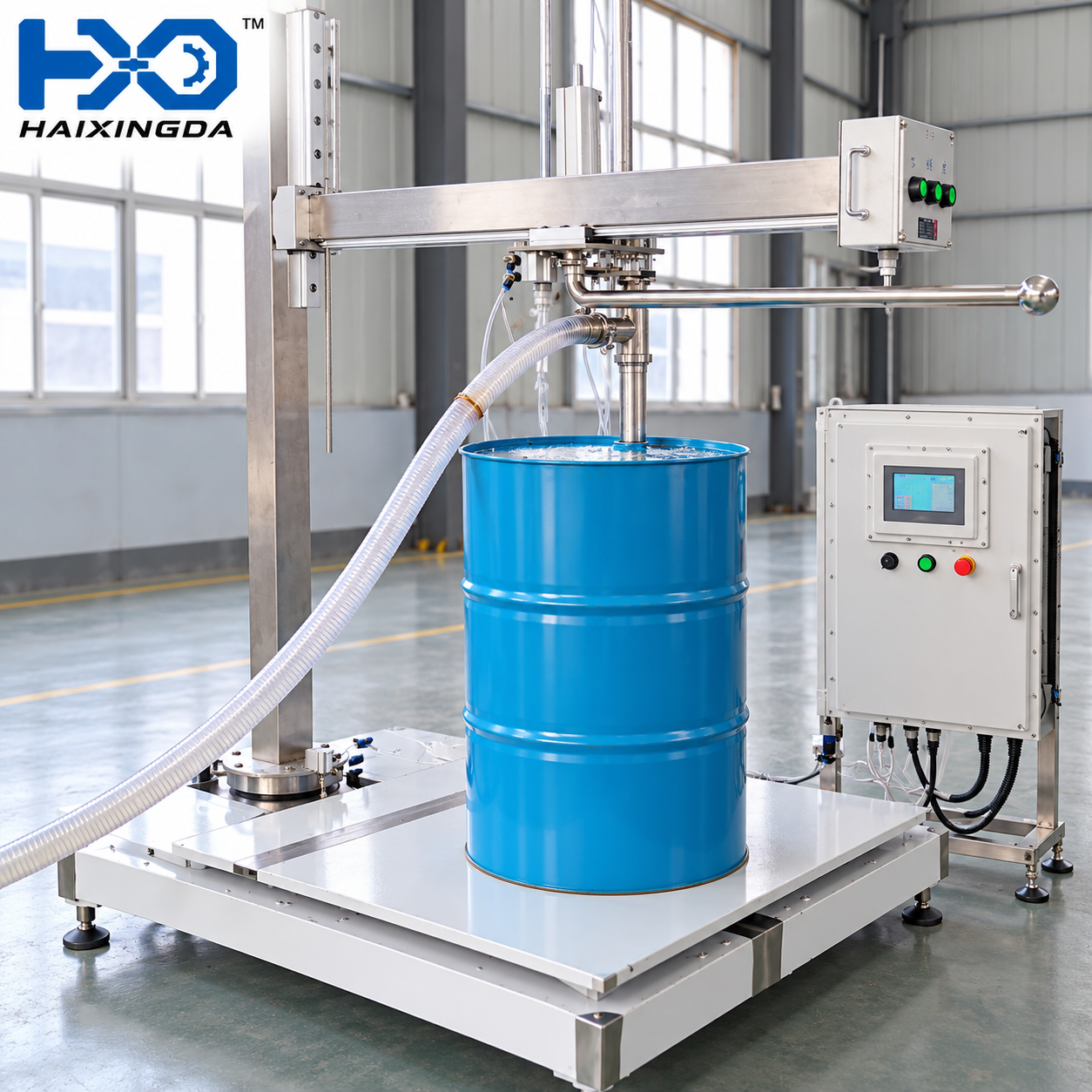

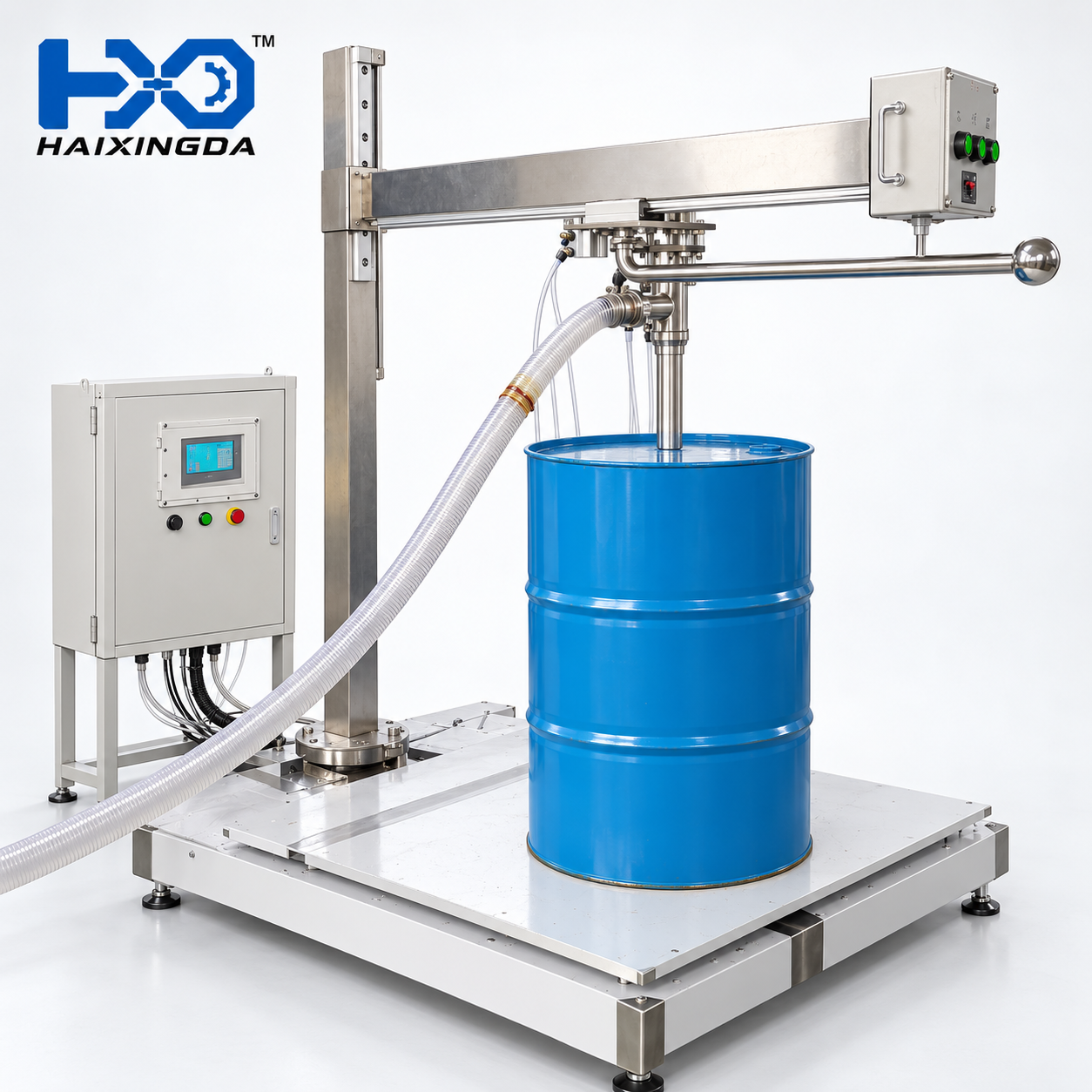

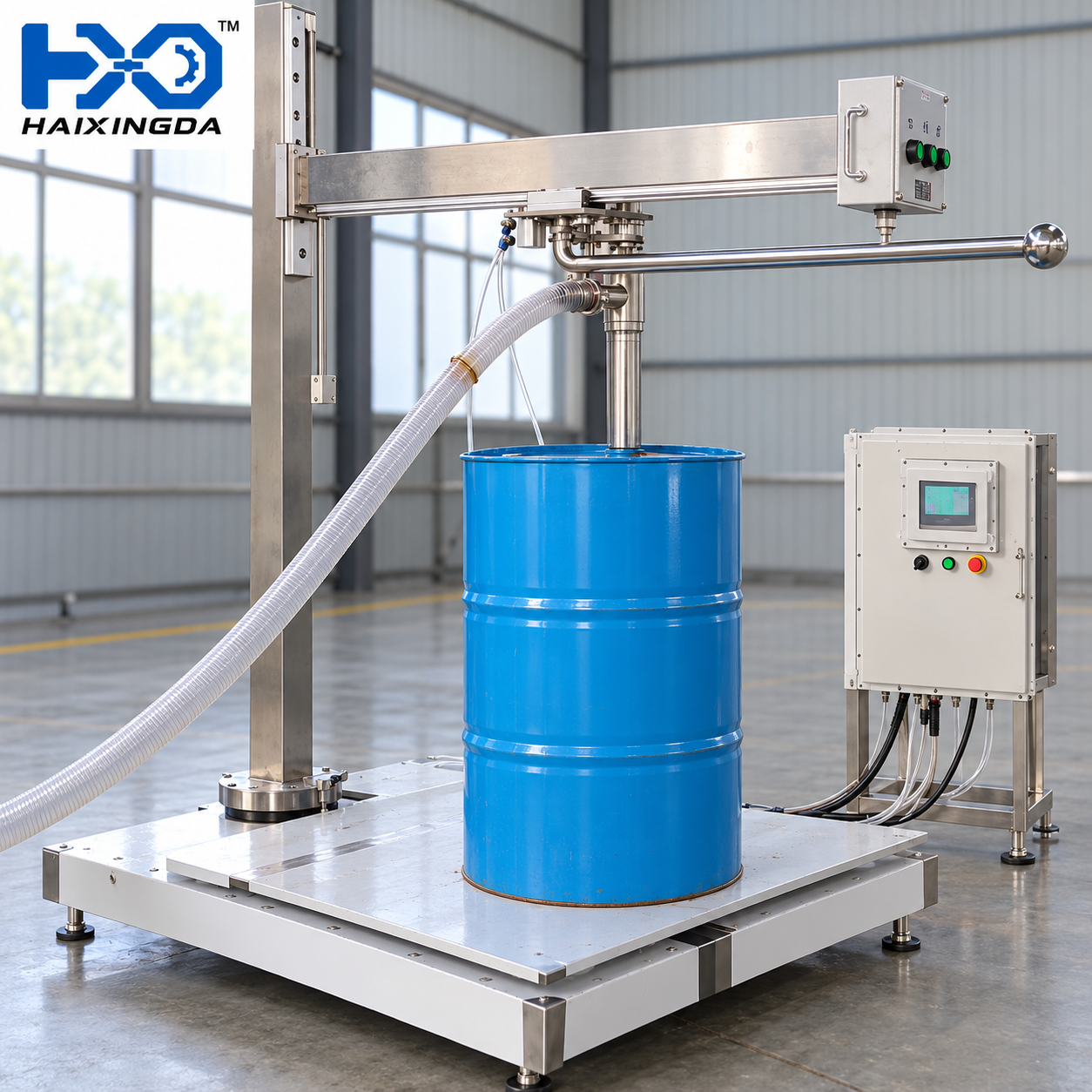

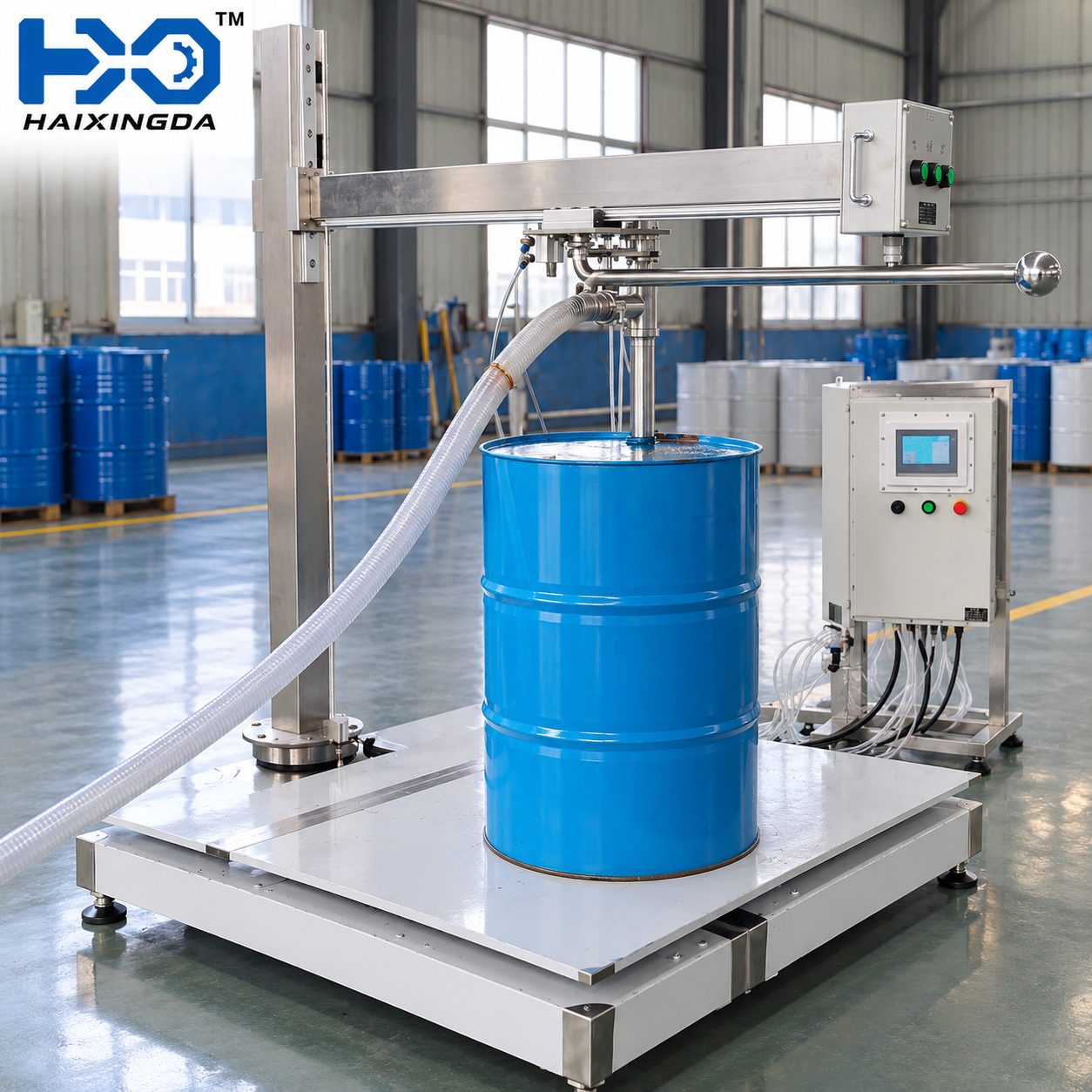

This semi automatic drum filling machine is designed to fill compatible liquid products by weight. The drum is positioned on the weighing platform while the filling lance is placed into the container opening. The weighing system works with the control unit to manage the filling process according to the configured target. This setup helps businesses handle bulk liquid packaging with a clear, weight-based workflow. Confirm the filling range and weighing accuracy with HXD before ordering.

Semi Automatic Operation for Flexible Production

The semi automatic design allows the operator to position each drum, place the filling lance, and manage the filling cycle from the control panel. This workflow suits small and medium production batches, changing orders, and sites that need a dedicated drum filling station. It also gives operators direct control over loading and unloading, without requiring a fully automatic conveyor line. Actual output depends on the liquid, target weight, and operating procedure.

Platform Weighing for Drum Filling

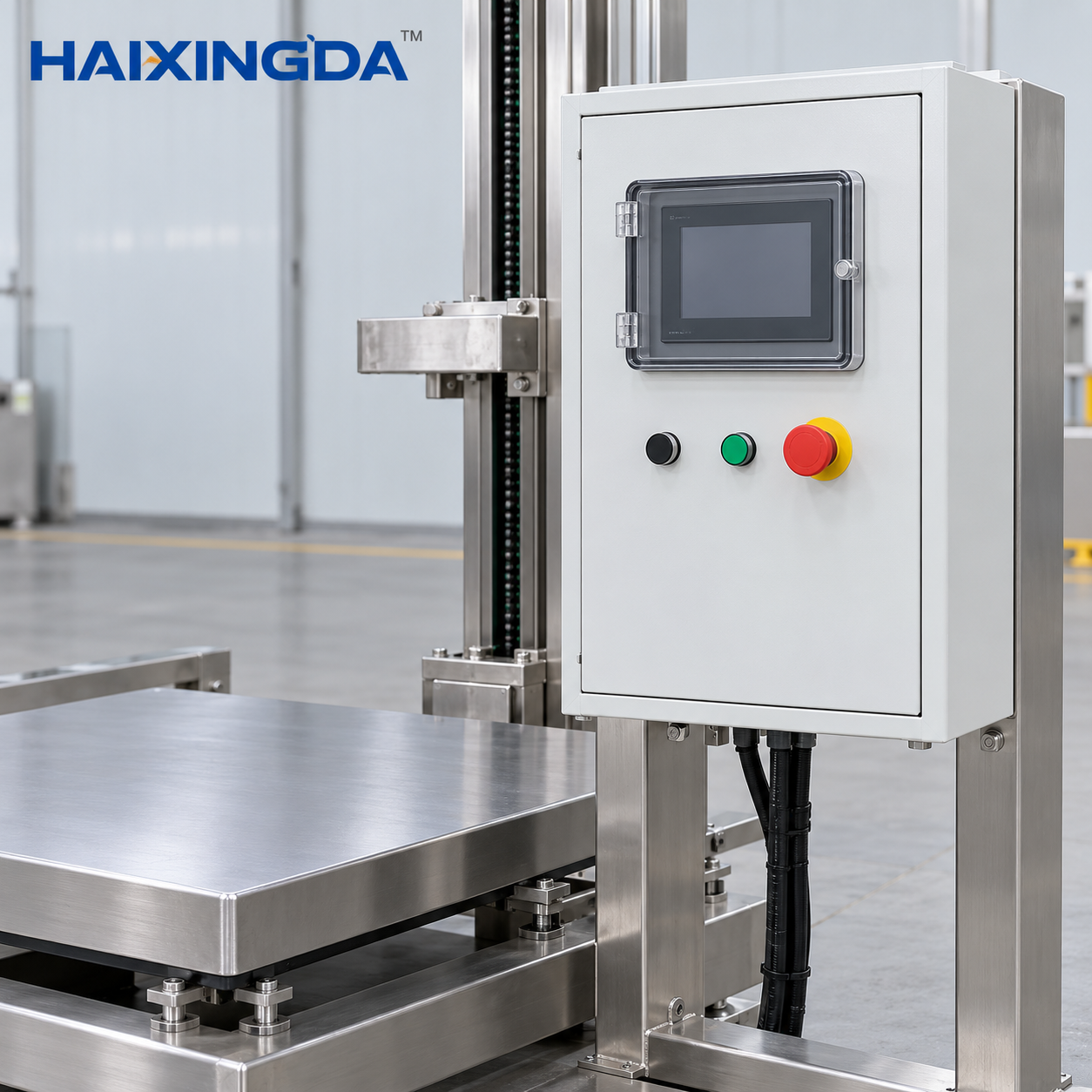

The platform scale supports the drum during filling and provides the weighing input for the process. The control cabinet is equipped with a display and operating buttons for managing machine functions. Together, these parts form a weighing filling machine for larger containers. Before use, place the drum steadily on the platform and check that the container is correctly positioned under the filling lance.

illing Lance for Open-Top Drums

The filling lance is positioned above the drum opening to deliver liquid into the container. Its placement can be reviewed against the drum height and opening dimensions before production. This arrangement is intended for compatible drums and barrels used in industrial liquid packaging. If your container has a different opening, height, or structure, send HXD its dimensions and photos so the fitting and filling machine can be checked.

Name: Semi-automatic Single-head Weighing and Filling Machine for Large Containers (Explosion-proof version available upon request)method

Number of filling heads: 1
Production capacity: 20–60 drums/hour (for 200L drums)
Dimensions (L × W × H): 1500 mm × 1700 mm × 1800 mm (customizable)
Compatible containers: 200kg steel drums and polyethylene (PE) plastic drums (samples to be provided by the user)
Container diameter: Φ50 mm – Φ150 mm (customizable)
Container height: 160 mm – 320 mm
Compatible closures: Plastic or metal tamper-evident caps
Main unit equipped with a variable-frequency drive (VFD) for speed control
Main unit power: 0.75 kW
