Semi Automatic Pneumatic Bucket Capping Machine Semi automatic bucket capping machine for large plastic pails by HXD

The HXD semi automatic bucket capping machine is designed to press plastic lids onto large buckets and pails. It uses pneumatic power to apply pressing force, helping operators close containers with a consistent machine-assisted process. The operator positions the bucket beneath the pressing head, places the lid on the opening, and starts the pressing cycle according to the machine configuration.

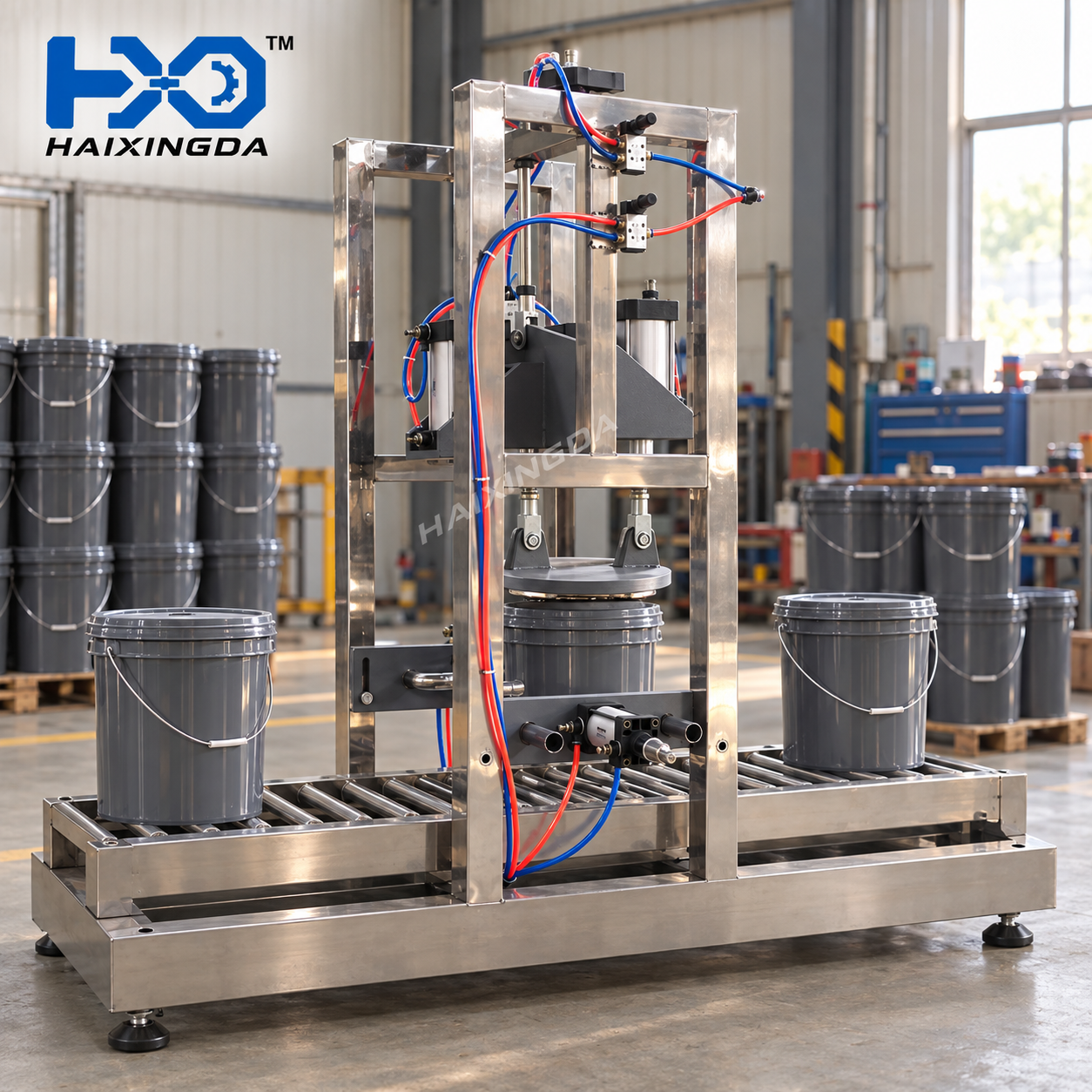

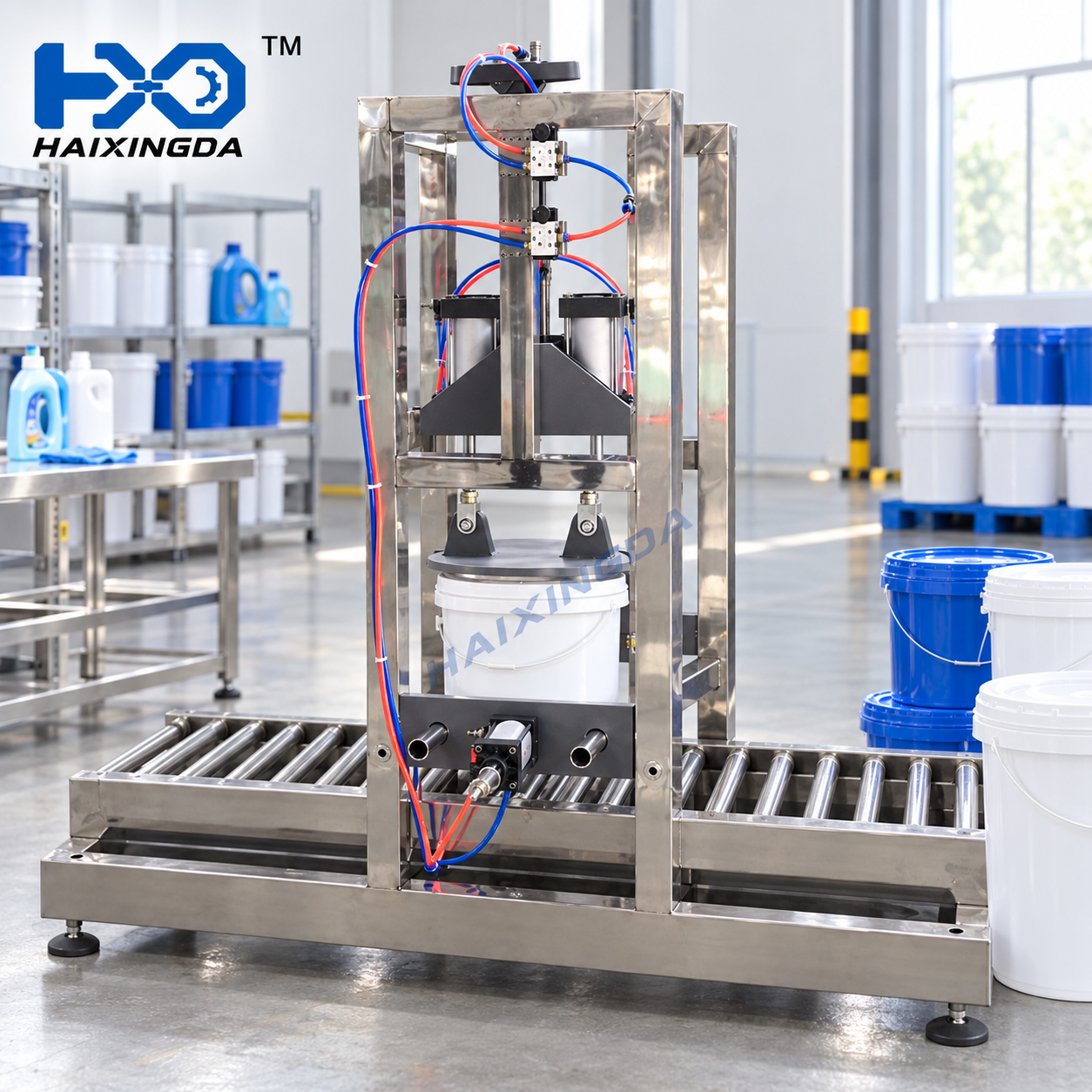

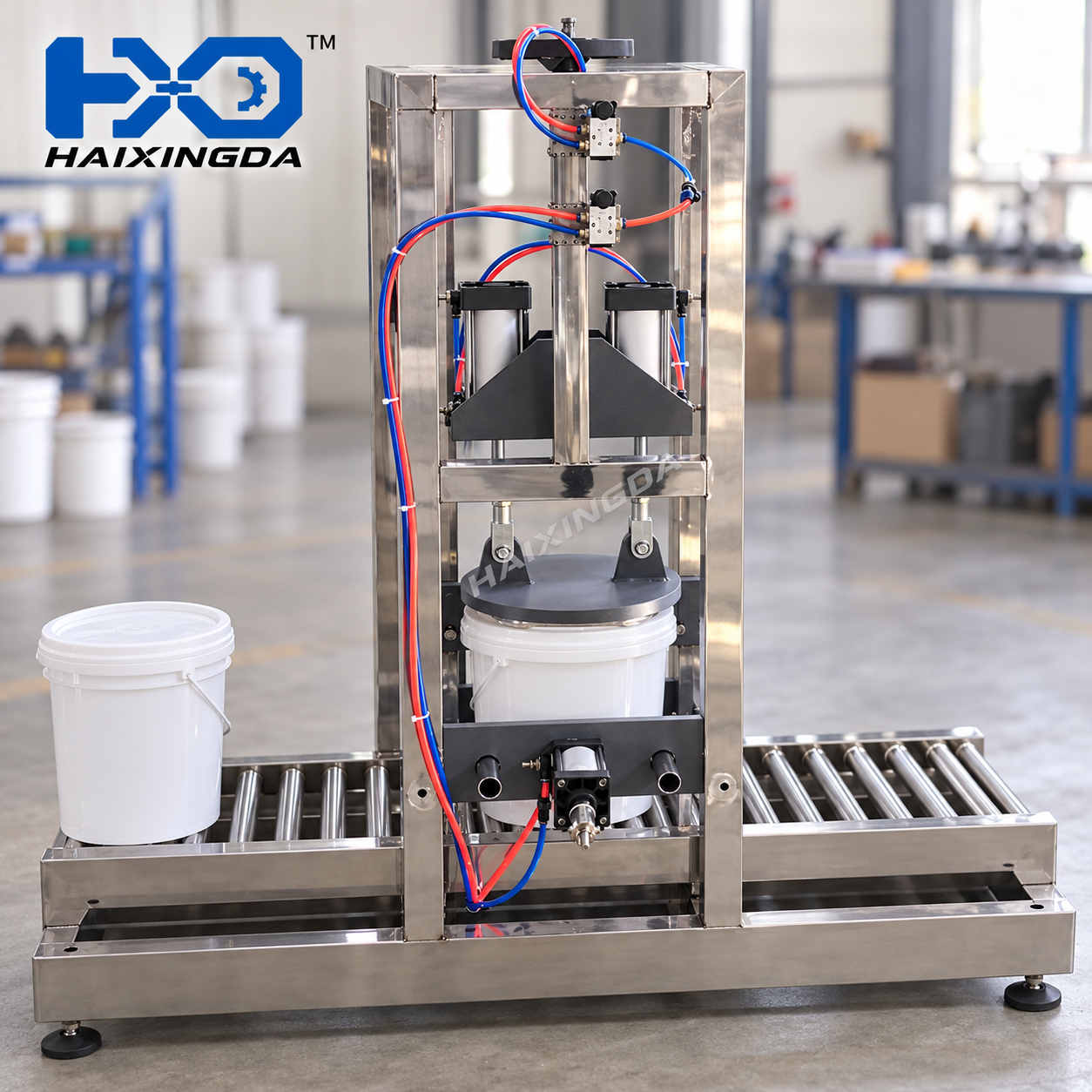

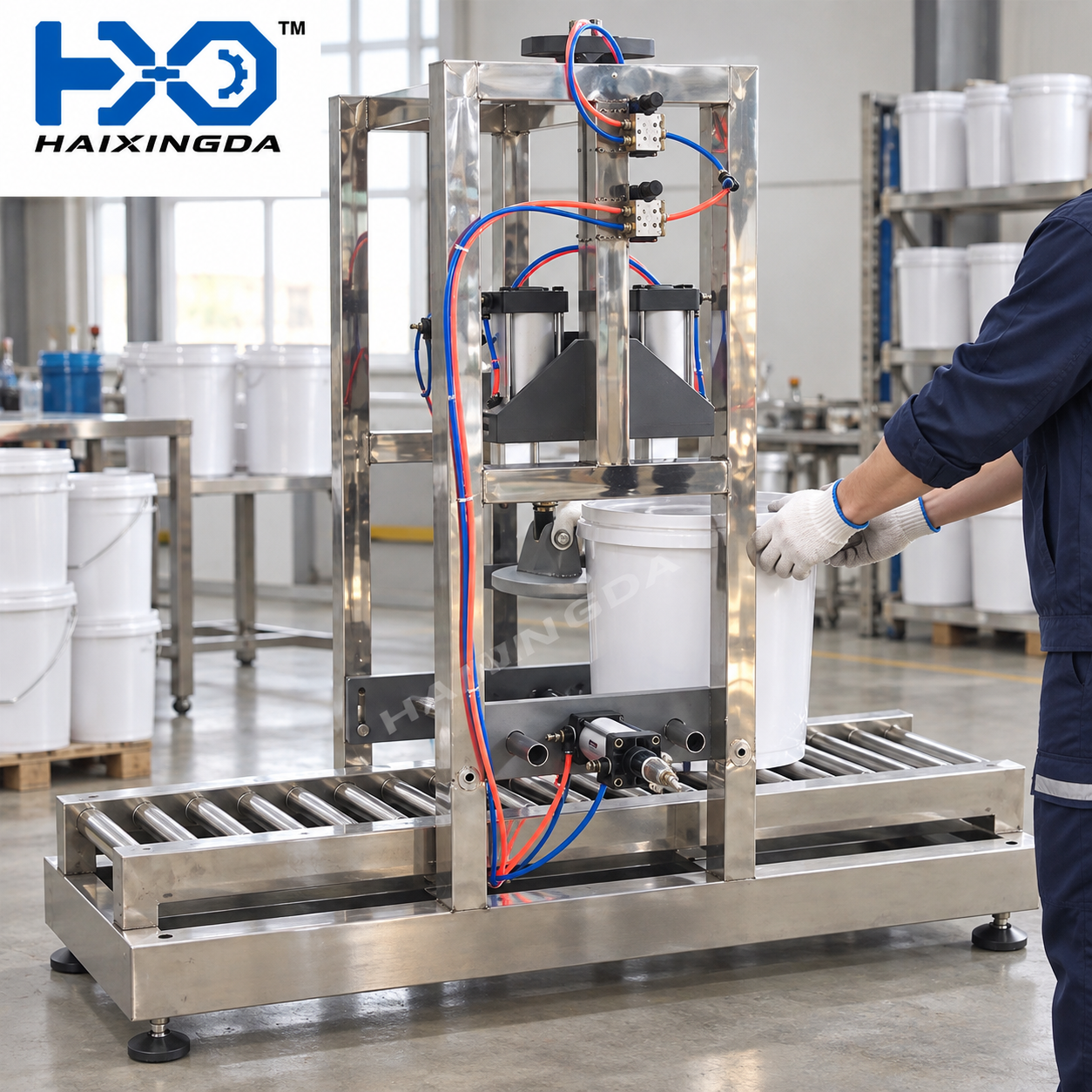

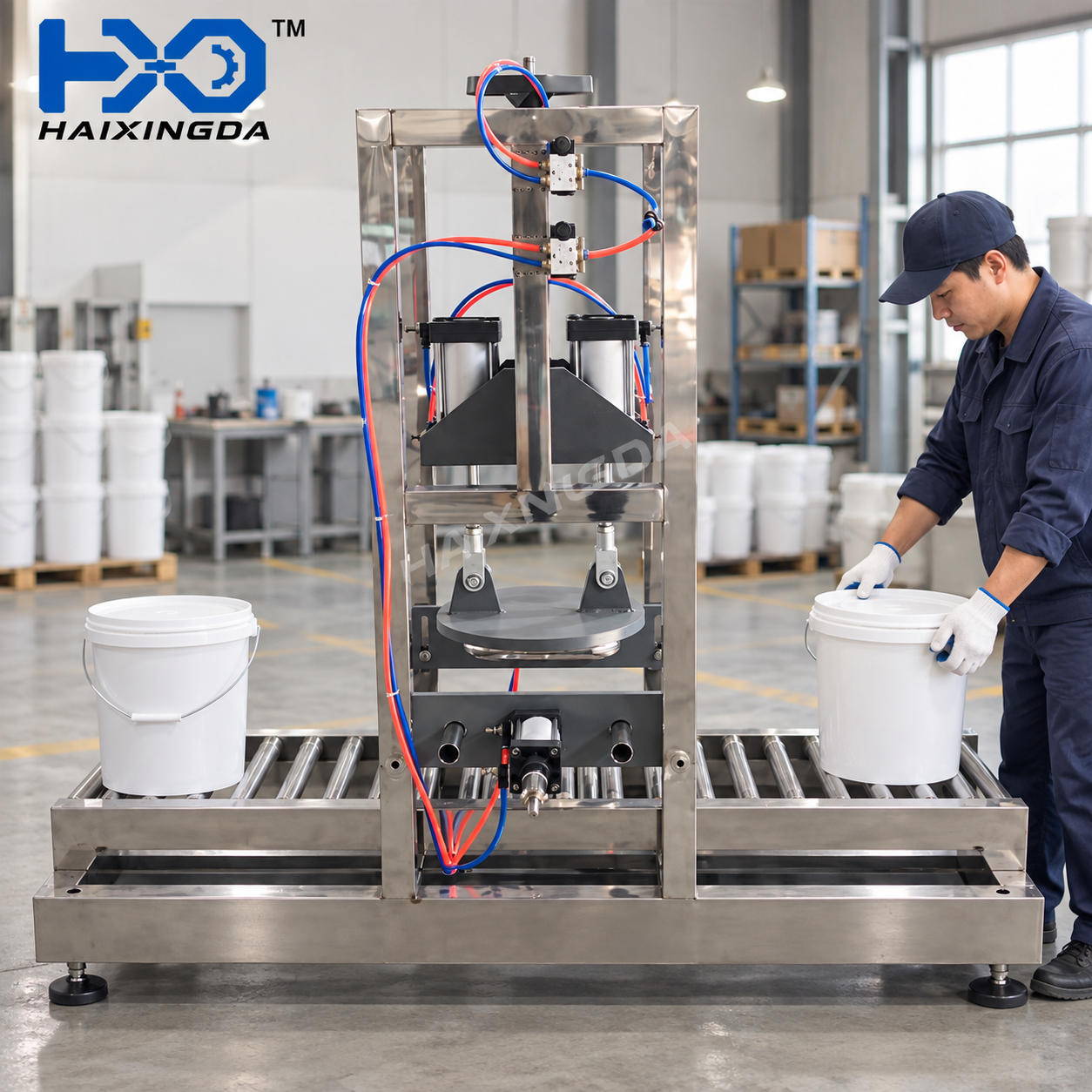

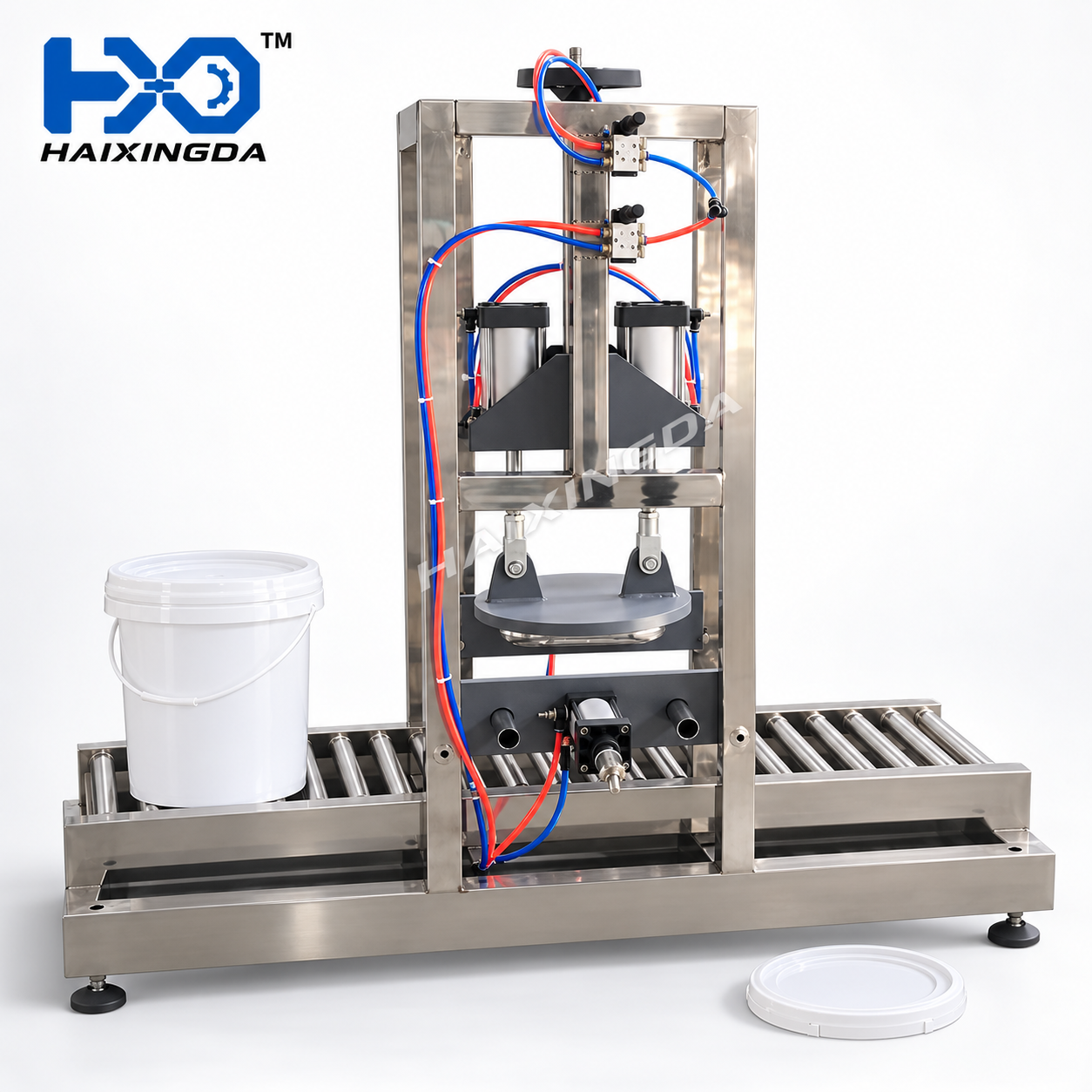

This equipment is suitable for manufacturers that need a practical lid-pressing solution for larger plastic containers. The pictured unit features a vertical press structure and a roller conveyor platform, providing an accessible working area for bucket positioning. The final machine setup should be confirmed against the dimensions of your buckets and lids.

Pneumatic Lid Pressing

The pneumatic system provides the force used to press the lid onto the bucket. Compared with fully manual pressing, a pneumatic press can reduce the physical effort required from the operator. The pressing result depends on the lid design, bucket rim, air pressure, tooling and machine setup. We recommend testing with your actual bucket and lid samples before confirming production requirements.

Designed for Large Plastic Buckets

The machine is intended for large plastic pails and similar containers that require a lid to be pressed into place. Before ordering, share the bucket height, opening diameter, lid dimensions and lid material. These details help confirm whether the press head and working area match your container.

Semi Automatic Operation

Semi automatic operation suits production workflows in which an operator handles bucket placement and machine activation. This setup can be considered by small and medium-sized manufacturers, packaging workshops and production lines that need machine-assisted lid pressing without specifying a fully automatic line.capping machine

Product Name: Pneumatic Capping Machine
Capping Speed: 200–800 containers/hour
Operating Voltage: 380V
Operating Pressure: 0.4–1.0 MPa (to be provided by the purchaser)
Power: 0.75 kW (excluding air compressor)
Air Consumption: <0.4 m³/min
